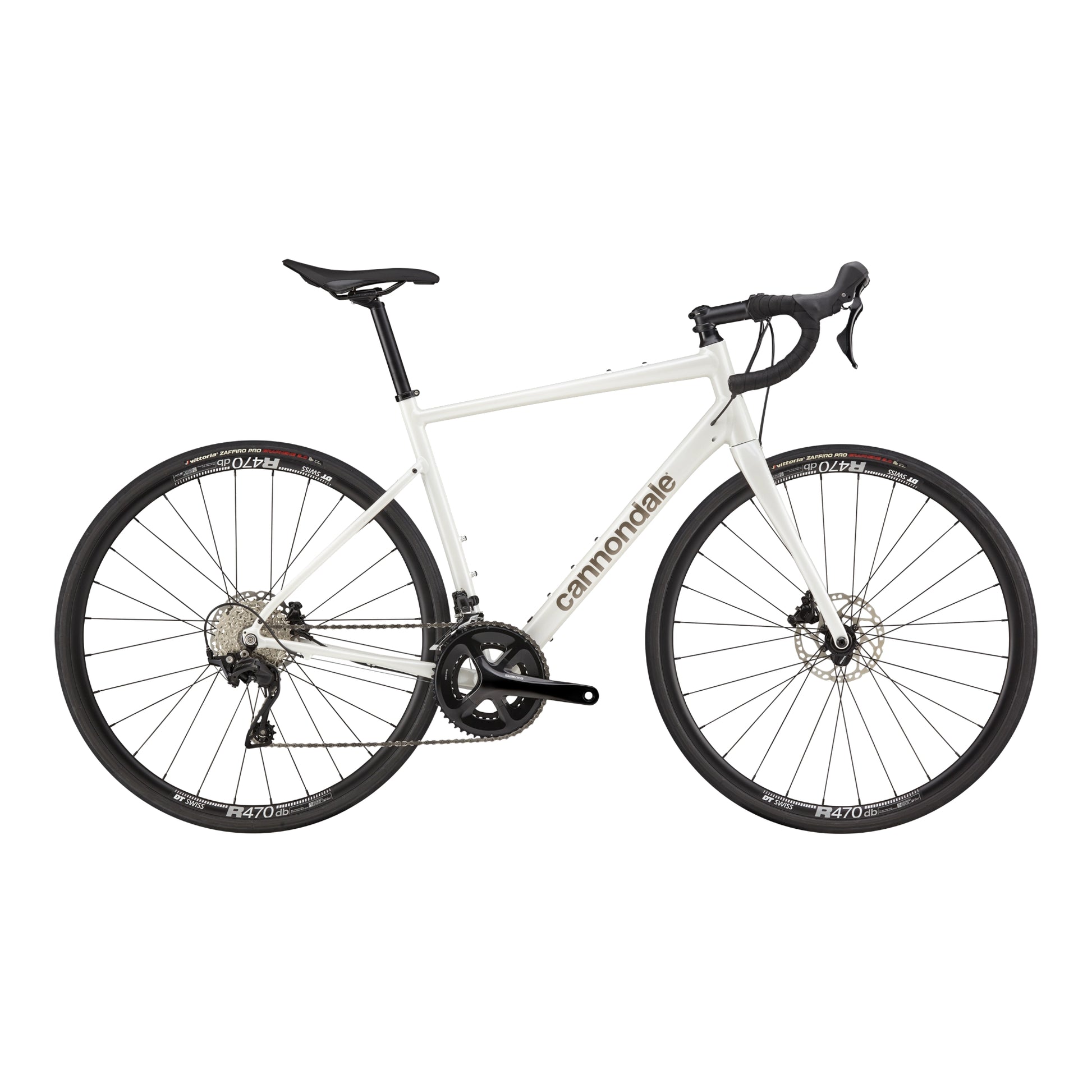

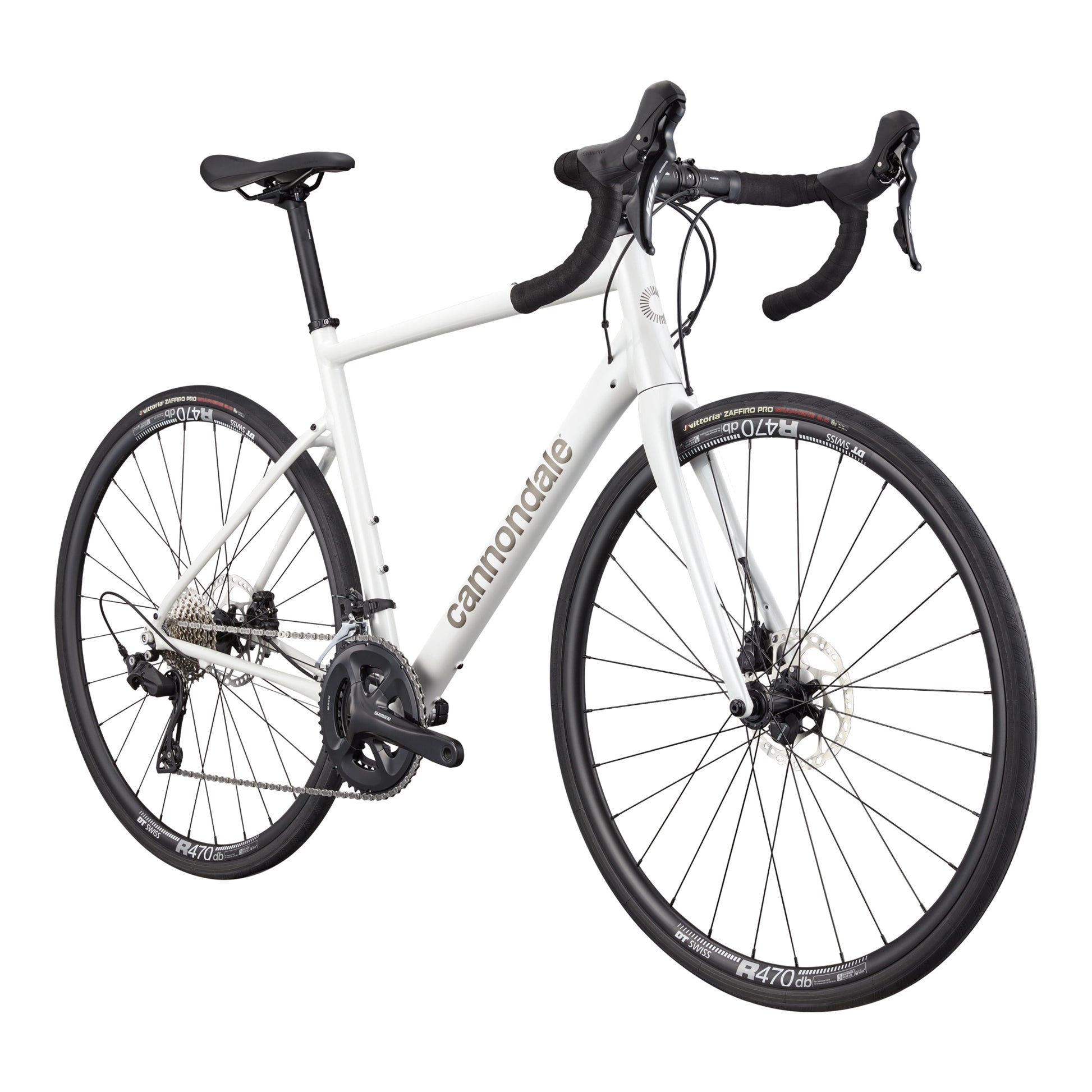

Road Reimagined
Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – our most comfortable, all-around, up-for-anything, pure road machine.
What it's for
Enjoyable road riding with comfort, speed, and finesse.
Where it thrives
The open road, up & down hills, rough pavement
What it's built for
Comfort, handling, going long
Highlights

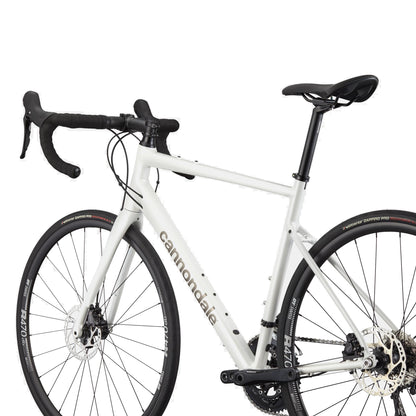

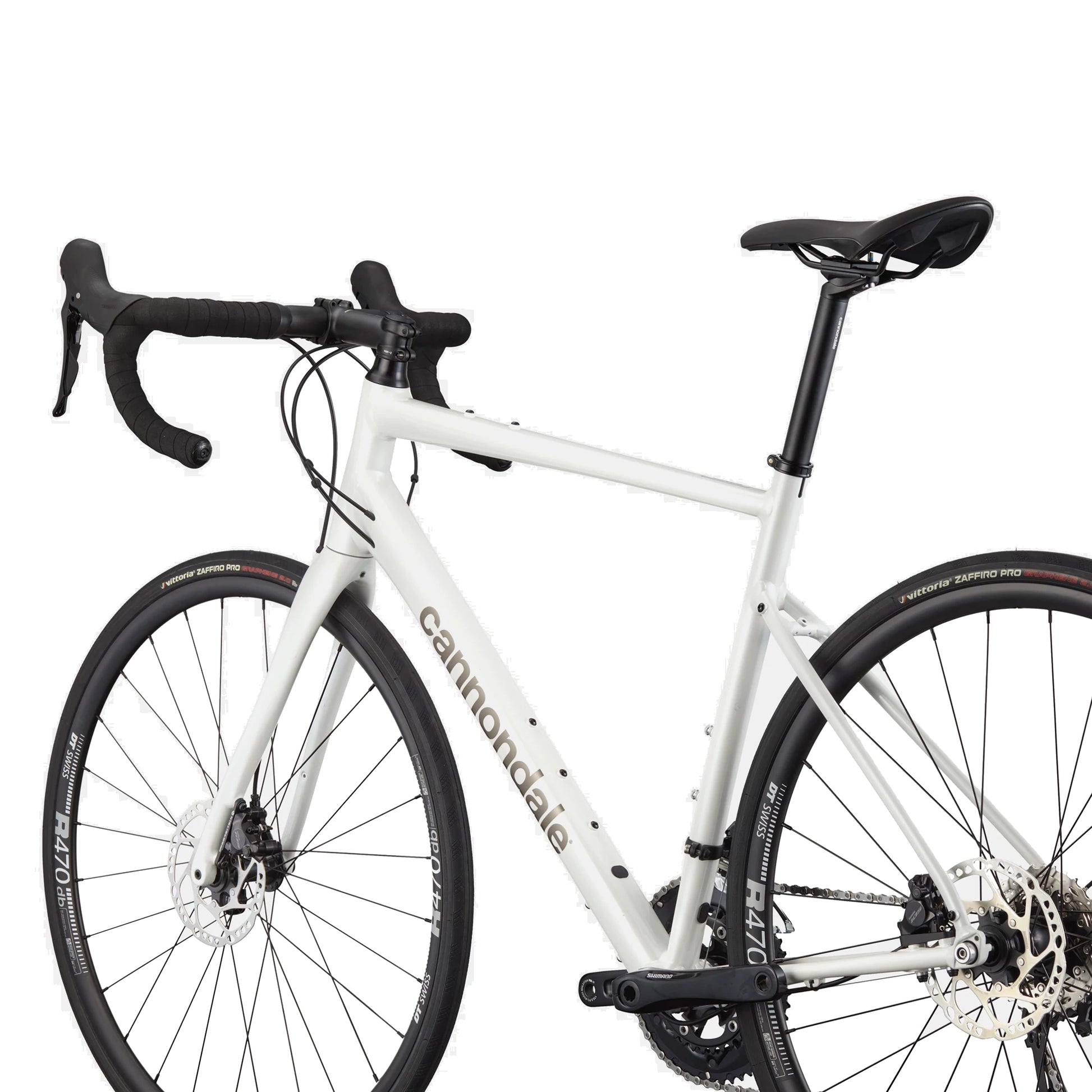

- Lightweight SmartForm C2 Alloy Frame w/ full carbon fork
- Shimano's legendary 105 12-speed group - incredible performance value
- Shimano 105 hydraulic disc brakes for smooth, controllable braking
- Light, durable DT Swiss R470 wheels with 700x30c Vittoria tires
Features
Frameset
| Frame | Lightweight SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat mount, 142x12 thru-axle, hidden rack/fender mounts |
| Fork | Synapse Carbon, integrated crown race, 12x100mm thru-axle, internal routing, flat mount brake, fender mounts |
| Headset | Integrated, 1-1/8" - 1-1/4" |
Drivetrain

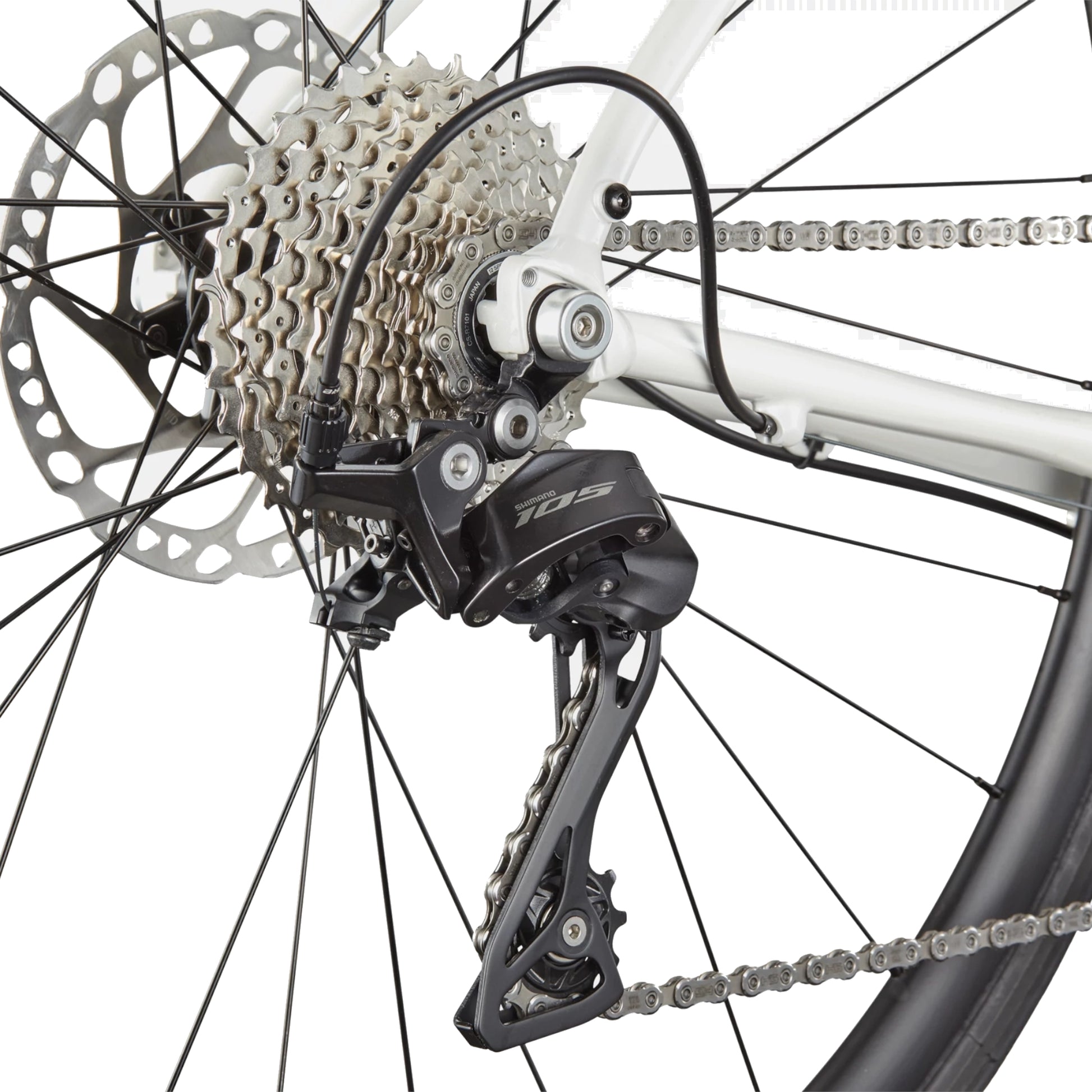

| Rear Derailleur | Shimano 105 7100, 12-speed |
| Front Derailleur | Shimano 105 7100, braze-on |

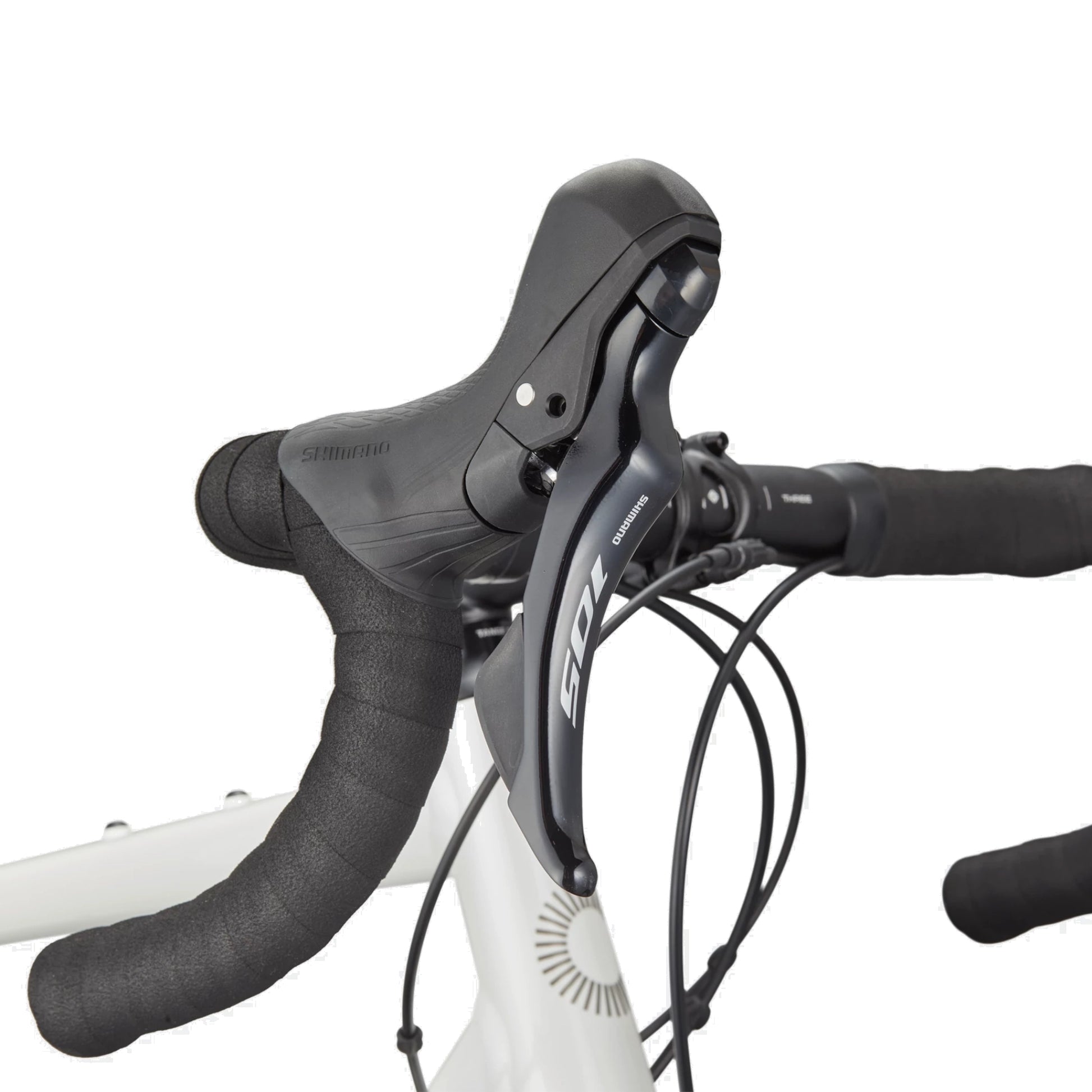

| Shifters | Shimano 105 7100, 12-speed |
| Chain | Shimano 105 7100, 12-speed |

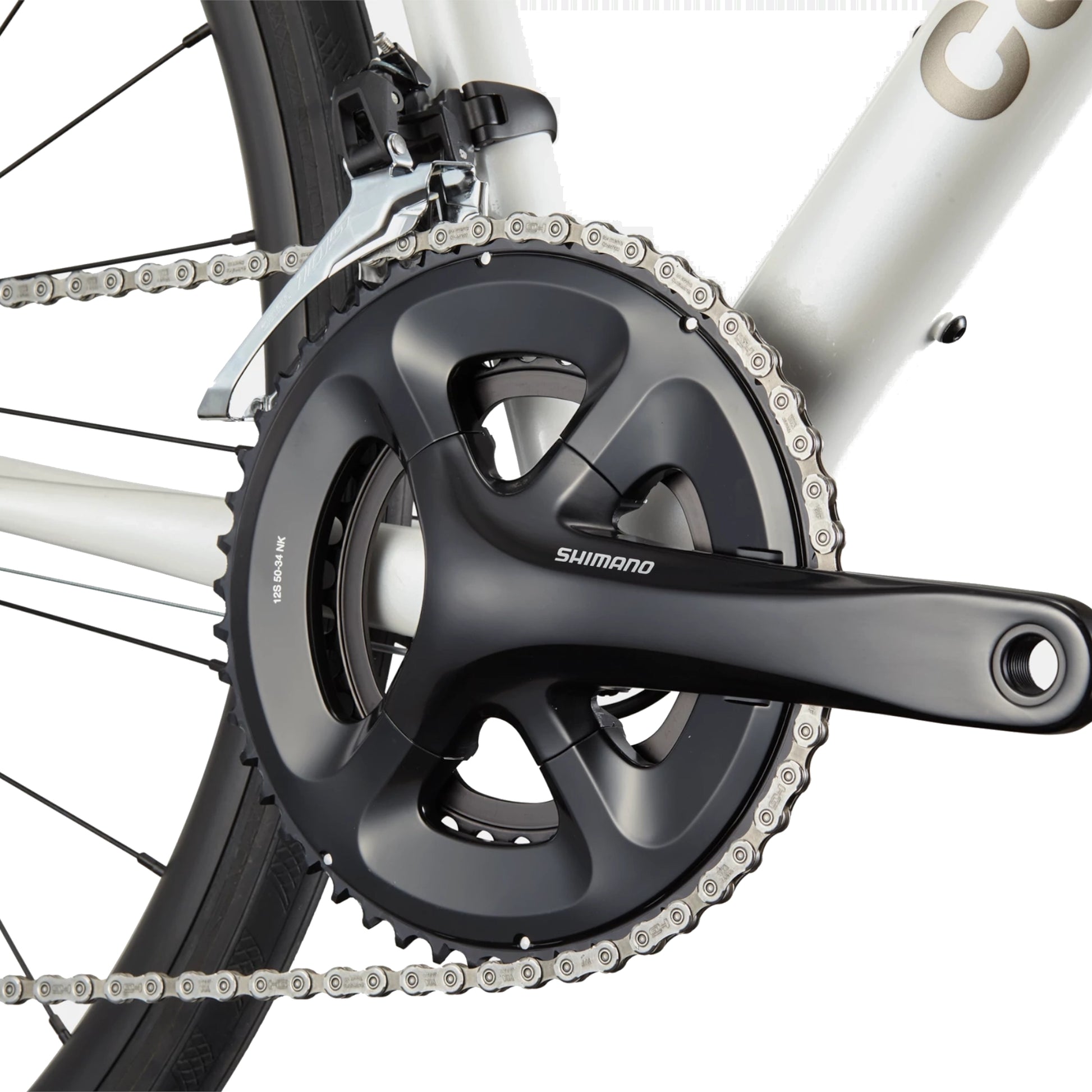

| Crank | Shimano RS520, 50/34 |
| Rear Cogs | Shimano 105 7100, 12-speed, 11-34 |
| Bottom Bracket | Shimano BB-RS500, BSA |
Brakes
| Brakes | Shimano 105 7170 hydraulic disc, 160/160mm RT64 centerlock rotors |
| Brake Levers | Shimano 105 7100 hydraulic disc |
Wheels
| Rims | DT Swiss R470 DB, 28h |
| Spokes | Stainless Steel, 14g |
| Tyre Size | 30 |
| Wheel Size | 700 |
| Hubs | (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock |
| Tyres | Zaffiro Pro Bright Black Reflective, 700x30c |
Components

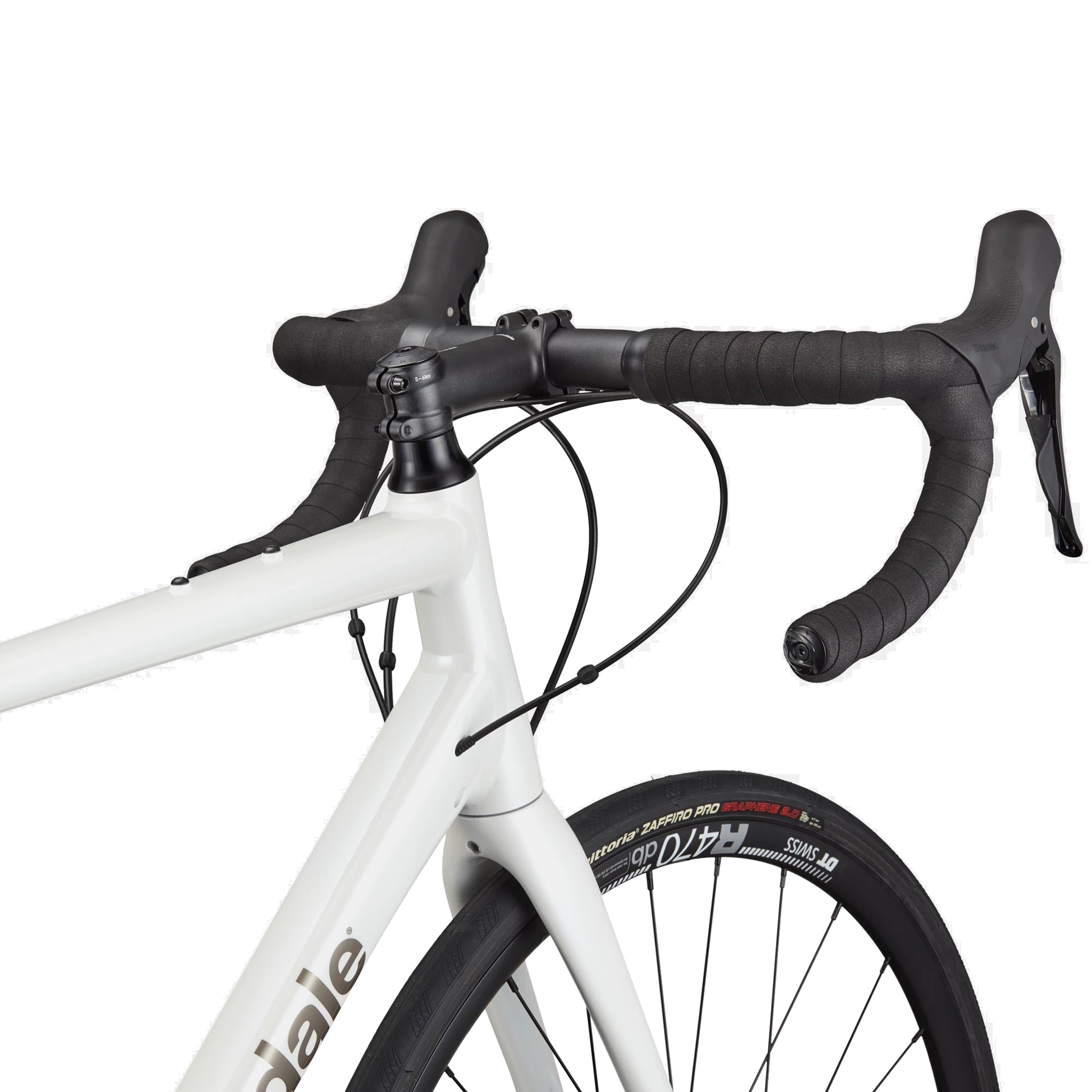

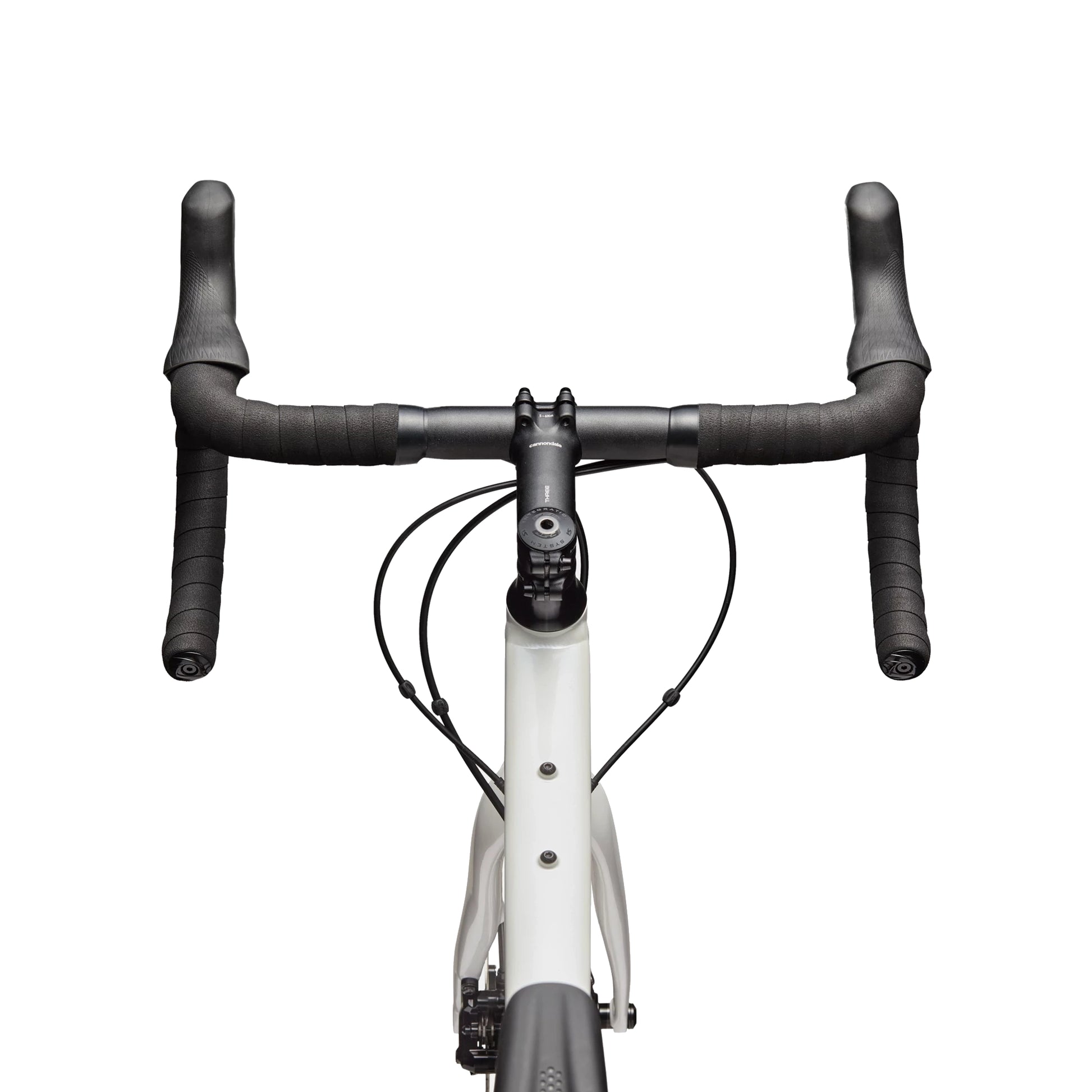

| Handlebar | Cannondale 3, 6061 alloy, Compact |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Aliante R5, S-alloy rails |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm |
Other
| Accessories | Trainer axle end caps |
Specifications subject to change without notice.
