Ridley

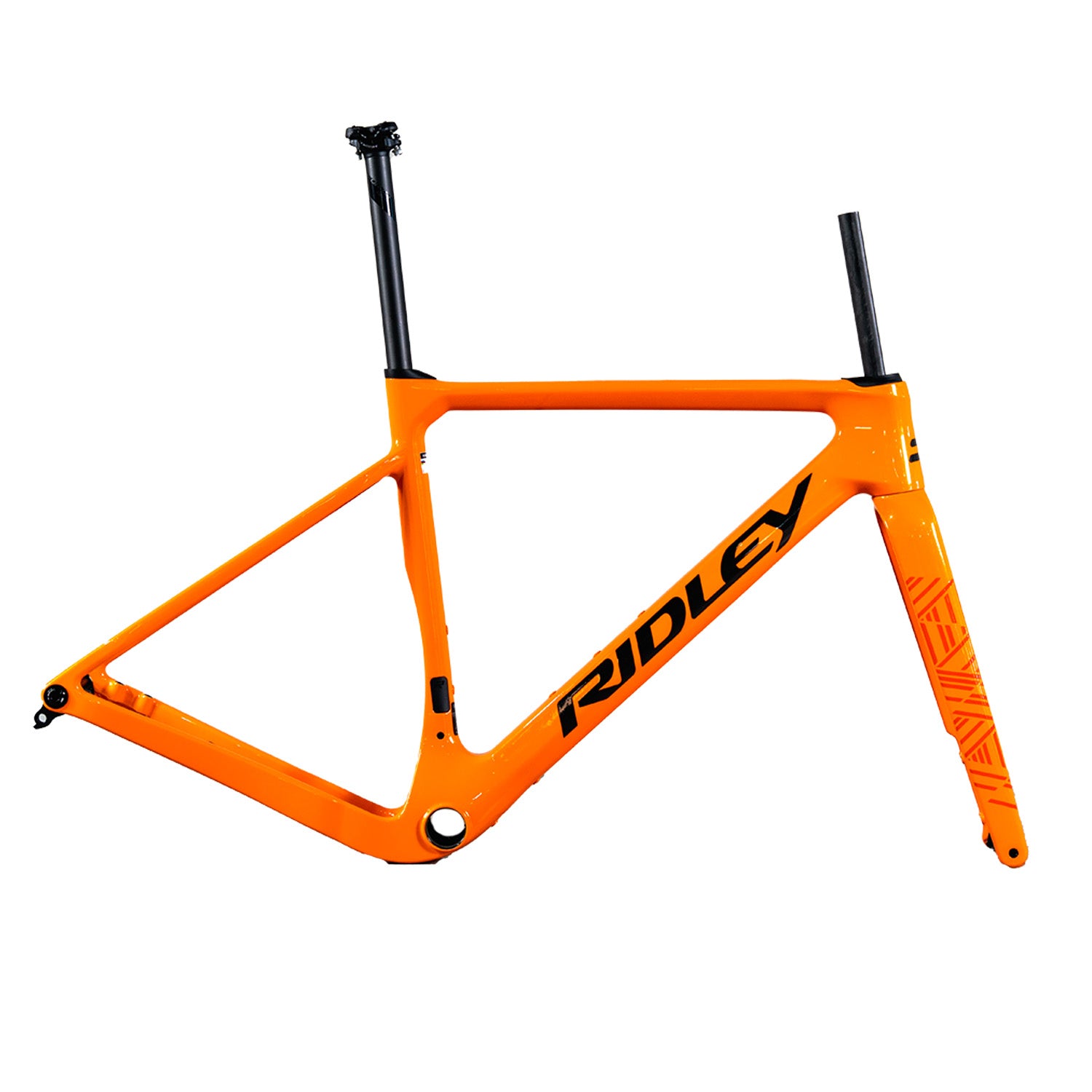

2025 Ridley ASTR Frameset - XSmall

$5,000.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Colour Orange/Black

Quantity

The ASTR brings all the features of the ASTR RS to an affordable price point: from aerodynamic improvements to modern gravel geometry.

The ASTR is ready for every fast ride or gravel race on every type of terrain. Just like the ASTR RS, the ASTR has a tyre clearance of 47 - 52 mm (52 millimeters with a 1x setup and 47 millimeters with a 2x setup) for increased grip and comfort.

Modern performance geometry also requires more stability due to increasingly rough terrain combined with higher speeds. A 71.5-degree headtube angle ensures you have faster steering. The ASTR features a steeper seat tube (74 degrees), making climbing performance and power transfer better than with a less steep seat tube.

The product developers kept the chainstays as short as possible to accommodate tyres up to 52 millimetres without losing the feeling of responsiveness when accelerating. In addition, the bottom bracket is a bit lower than on bikes that bet on comfort. This ensures you have more stability at high speed. Finally, the head height is lower, so you sit more aerodynamically on the bike. In summary, this boils down to a modern competitive geometry, tailored for the ambitious gravel racer.

With the addition of the ASTR to the lineup, Ridley underscores its ambition to offer everyone the chance to own an ASTR: from ambitious amateurs to the most dedicated pros.

Features

Performance geometry: Modern performance geometry demands more stability due to increasingly rough terrain combined with higher speeds. A 71.5-degree headtube angle ensures you have faster handling. The Astr family features a steeper seat tube (74 degrees), improving climbing performance and power transfer.
Tyre clearance up to 52 millimetres: The Astr family features groundbreaking tyre clearance: 52 millimeters with a 1x setup and 47 millimeters with a 2x setup. This is no coincidence, but the result of a carefully considered vision from Ridley's product developers. They anticipated the increasing technical demands of gravel racing and the growing desire among riders for more grip, stability, and versatility.
Diffuser fork crown: The fork crown has an integrated diffuser to reduce drag. The airflow passes more easily through fork crown while extra energy is added to it. The result is that the airflow passes the downtube more easily without pushing the bike back. At the same time there is less drag in the area behind the fork and headtube. Less resistance, more speed!
Aero-to-weight: Just like the Astr RS, the Astr is also built according to the 'aero-to-weight' principle. The aero-to-weight principle is the trend in the cycling peloton. Ridley no longer makes riders choose between aerodynamics and weight but combines the best of both worlds.
Universal Derailleur Hanger (UDH): The universal derailleur hanger (UDH) is the new standard in the cycling world. Not only is this derailleur hanger compatible with all modern shifting groups, it also protects against derailleur breakage and chain drops. In mountain biking, UDH has long been very common, and Ridley is bringing the technology to other segments as well.
Removable front derailleur clamp: Ridley's innovative removable front derailleur clamp ensures a sleek, streamlined appearance when using a 1x setup. In collaboration with Wolf Tooth, they've developed a custom chainguide and chain catcher perfectly tailored to fit these frames. To maintain a clean and polished look, they've also designed a specialized cover to seamlessly replace the clamp when it’s not in use.

Specifications +

Specifications

Frame	ASTR, HM carbon, BB86, TA12x142, 52mm tyre clearance
Material	Carbon
Frame Level	Essential Series
Max Tyre Clearance 700c (*)	52mm (1x drivetrain) / 47mm (2x drivetrain)
Fork	ASTR, TA 12x100, Integrated forkcrown diffuser; 50mm rake, D-Shape steerer
Seatpost	4ZA Cirrus , 27.2 , 400mm , Zero offset , Black

Specifications subject to change without notice.

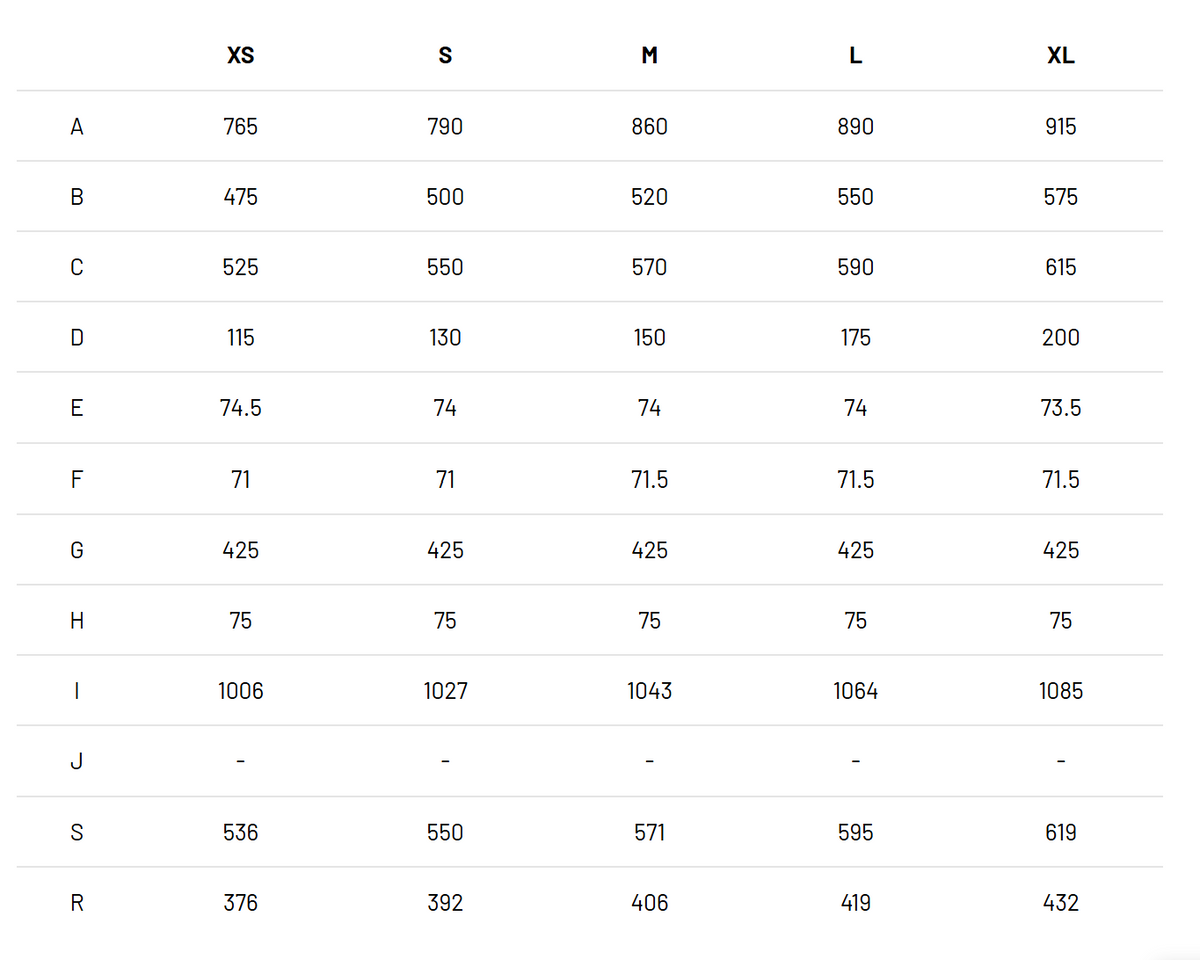

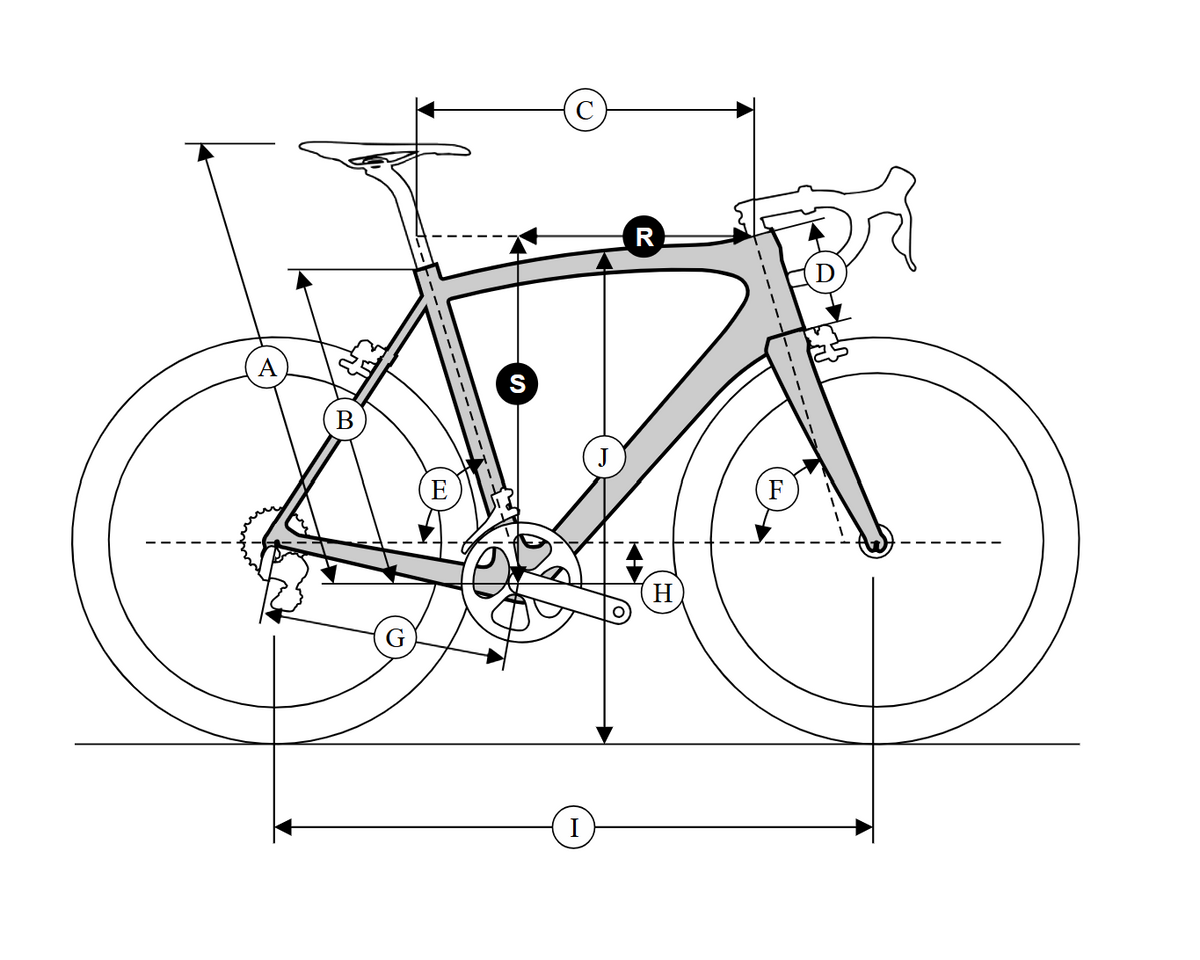

Geometry +
