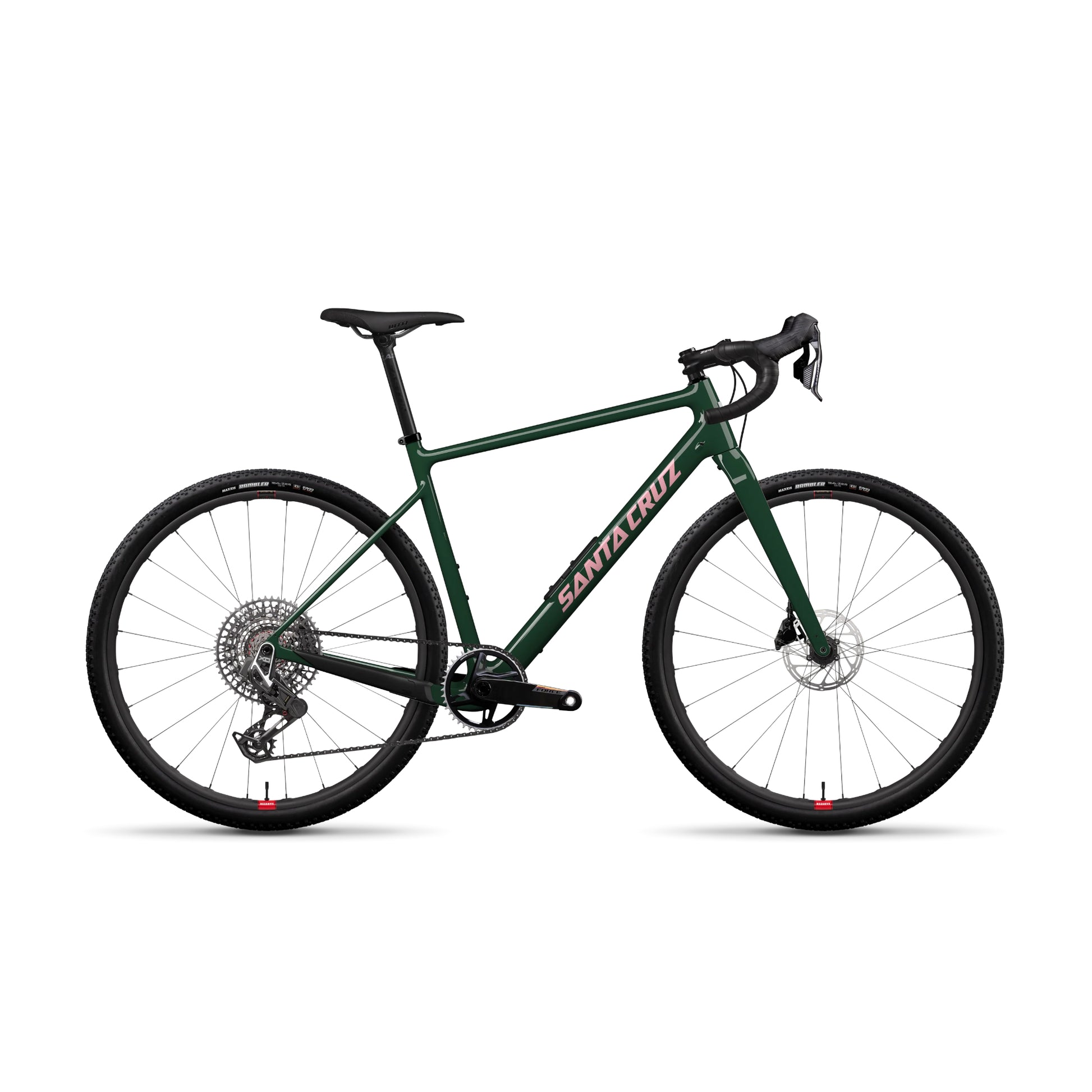

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.
Features
Frame
| Material | Carbon CC |
| Frame | Carbon CC Gravel |
| Weight | 19.14lbs / 8.68kg |
| Wheel Size | 700c |
Suspension
| Fork | Carbon |
| Shock | N/A |
Drivetrain
| Bottom Bracket | SRAM DUB 68mm Road Wide BB |
| Cassette | SRAM X0 1295 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12spd |
| Chainguide | N/A |
| Crankset | SRAM Force XPLR, 42t XS/S 170mm, M/L 172.5mm, XL/XXL 175mm |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM Force AXS |
Brakes
| Brakes | SRAM Force |
| Front Rotor | SRAM Centerline, Centerlock, 160mm |
| Rear Rotor | SRAM Centerline, Centerlock, 160mm |
Cockpit
| Grips / Bar Tape | Velo Bar Tape |
| Handlebars | Zipp Service Course SL-70 XPLR Bar, 31.8 XS/S 42cm, M 44cm, L/XL/XXL 46cm |
| Headset | Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest |
| Saddle | WTB Silverado Medium Fusion, CroMo SL |
Wheels
| Front Rim | Reserve 25|GR |
| Front Hub | DT Swiss 350, 12x100, Centerlock, 24h |
| Front Tyre | Maxxis Rambler, 700x45c, DC, EXO |
| Rear Rim | Reserve 25|GR |
| Rear Hub | DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h |
| Rear Tyre | Maxxis Rambler, 700x45c, DC, EXO |
| Valves | Reserve Fillmore Valves |
Specs
| Bottom Bracket Shell | Threaded 68mm |
| Rear Brake Mount | 160mm FM |
| Fork Axle to Crown | 430mm |
| Fork Compatibility | 40mm |
| Fork Offset | 45mm |
| Front Derailleur Mount | Clamp On |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 42t (1x) | 50t (2x) |
| Max Tyre Clearance | 50mm (1x) | 45mm (2x) |
| Rear Spacing | 142mm |
| Seat Clamp Diameter | 31.8mm |
| Seat Post Diameter | 27.2mm |
| UDH Compatible | Yes |
| Water Bottle Mounts | 3 |
Specifications subject to change without notice.
